Accessories for LV and MV non-insulated networks

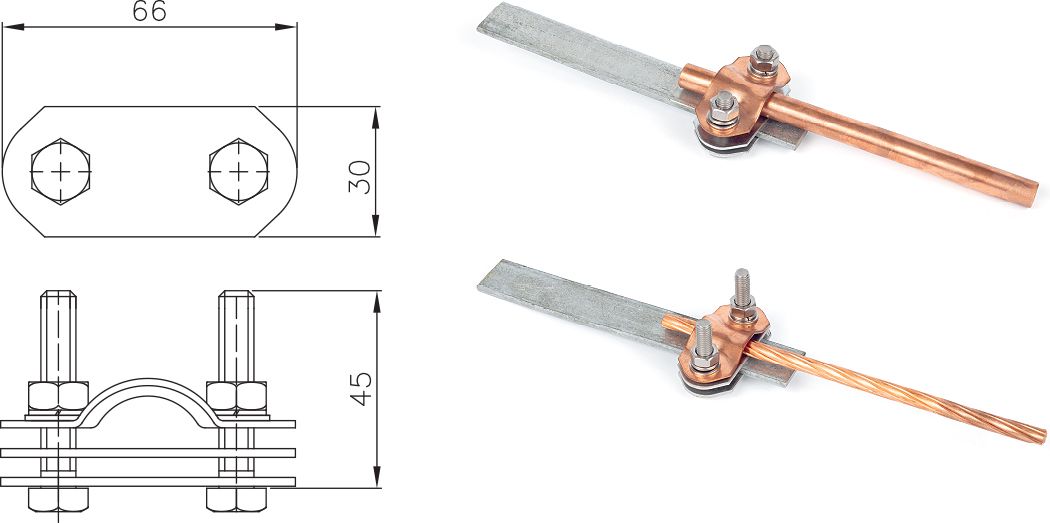

CONTACT CLAMP MKS

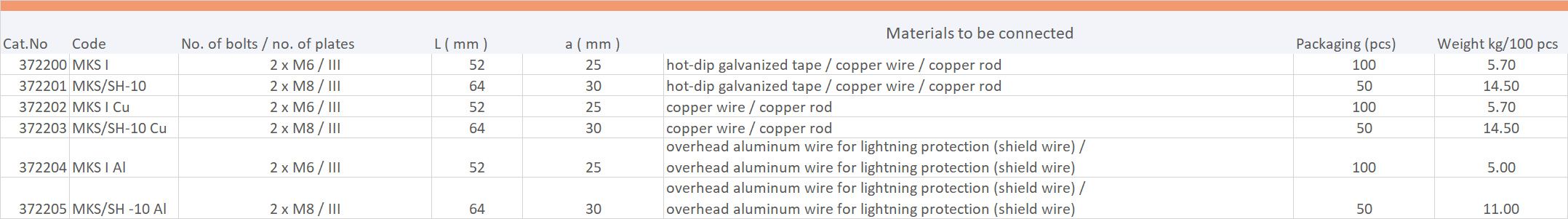

KAT. BR./ CAT.NO. 372100 | KOD/CODE: MKS | STANDARD: SRPS N.B4.934 | SRPS N.B4.935 | SRPS N.B4.936 | EN 62561-1
Marel Contact Clamp MKS is designed for the interconnection of :
hot-dip galvanized earthing tape of various dimensions with a copper earthing rod or a copper earthing wire ;
hot-dip galvanized earthing tape of various dimensions with an overhead aluminum wire for lightning protection (shield wire);
copper earthing rod or a copper earthing wire with an overhead aluminum wire for lightning protection (shield wire);
two copper earthing rods or two copper earthing wires;
two overhead aluminum wires for lightning protection (shield wires)
Note: The dimensions and design of the lightning protection and grounding system determine whether one or two clamps are installed at each connection point.
